Durable Ultrasonic Cleaning Transducer 28khz/40khz High Vibration Efficiency

Contact Now
Ours ultrasonic Co.,Ltd
City:shenzhen
Province/State:guangdong
Country/Region:china
Contact Person:MrsAdmin/Abby/May/Tina//Aimee
Contact Now

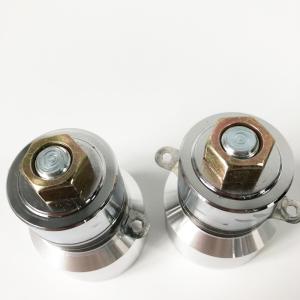

Durable Ultrasonic Cleaning Transducer 28khz/40khz High Vibration Efficiency

Ask Latest Price
Brand Name :Ours
Model Number :ARS-QXHNQ13550 PZT-4
Certification :CE and FCC
Place of Origin :ShenZhen China
MOQ :1PCS
Price :USD11/PCS-USD13/PCS
Payment Terms :T/T, Western Union, PAYPAL
Supply Ability :1000000pcs
Delivery Time :2-3 days
Packaging Details :Carton box or plywood box
Power :50W
Frequency :135khz ultrasonic transducer
Usage :Ultrasonic cleaning machine
Material :Stainless Steel
Size :54*36*35mm
Weight :215g
Piezoceramic :PZT-4 or PZT-8
Static Capacity :4200(pF)±10%
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

ultrasonic cleaner transducer installation cleaning tank 28khz/40khz
Durable Ultrasonic Cleaning Transducer 28khz/40khz High Vibration Efficiency

Ultrasound vibrator, also known as ultrasonic vibrator, ultrasonic vibrator, is a kind of ultrasonic transducer, is the core component of the ultrasonic cleaning machine. Industry standard name: ultrasonic transducer, belongs to piezoelectric ceramic material, one of the main parts of ultrasonic cleaning machine. In terms of power, the single ultrasonic head is 60W and 100W. Frequencies are: 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, or higher respectively; from the shape difference is: straight column, horn, etc.

Purchase Notes:
1. The ultrasonic oscillator shall be delivered according to the customer's requirements. If there is any objection, it shall be submitted within three days after receiving the goods.
2. Maintenance within one year after shipment and failure occur. Please find out under what circumstances, when the work or just started, whether there is water in the shock plate, and then contact us, we will give our opinions. It's not the oscillator's problem to check first. After confirming that the generator has a fault, the first way to deal with the problem is to send it back to the factory for free maintenance.
Third, in terms of cost, if it is determined that the fault is not man-made, our company will bear the freight during the warranty period. If there are other reasons, such as dry vibration and other non-company causes of failure, the company can repair free of charge, but do not bear the cost of transportation.
Fourth, our advantages: years of experience in ultrasonic production, diversified payment methods, a large number of inventory, good price and low price, strong after-sales service system, tailor-made products with real materials and sufficient materials


Features:
1. Low heat
2. Good thermal stability
3. Frequency and static capacitance consistency strong.
4. Resonance impedance is low.
5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency, high amplitude

Payment Terms:Prepaid by Bnak, T/T and West Union, ect.

Technical support: All our products adopt advanced technology, produce product with advanced system, all worker are experienced and skillful.

Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)
Static Capacity
(pF)±10%
Input Power(W)
ARS-QXHNQ-20100
PZT-8
94 900 20 10-20 5200 100
ARS-QXHNQ-25100
PZT-4
77 710 25 10-20 6600 100
ARS-QXHNQ-28100
PZT-8
66 625 28 10-20 5200 100
ARS-QXHNQ-28100
PZT-4
66 624 28 10-20 6600 100
ARS-QXHNQ-30100
PZT-8
61 555 30 10-20 5200 100
ARS-QXHNQ-2560
PZT-4
77 530 25 10-20 5400 60
ARS-QXHNQ-2860
PZT-8
68 470 28 10-20 3800 60
ARS-QXHNQ-2850
PZT-4
82 425 28 10-20 4100 50
ARS-QXHNQ-3360
PZT-8
58 420 33 10-20 3800 60
ARS-QXHNQ-4060
PZT-8
55 300 40 10-20 3800 60
ARS-QXHNQ-4060
PZT-4
56 310 40 10-20 5400 60
ARS-QXHNQ-4050
PZT-4
54 260 40 10-20 4100 50
ARS-QXHNQ-4050-1
PZT-4
57 300 40 10-20 4100 50
ARS-QXHNQ-5435
PZT-4
36 135 54 10-20 3200 35
ARS-QXHNQ-6860
PZT-8
80 460 68 10-20 3800 60
ARS-QXHNQ-68120
PZT-4
67 588 68 10-20 7800 120
ARS-QXHNQ-8060
PZT-4
60 325 80 10-20 5400 60
ARS-QXHNQ-12060
PZT-4
56 260 120 10-20 5400 60
ARS-QXHNQ-13550
PZT-4
54 215 135 10-20 4200 50

Durable Ultrasonic Cleaning Transducer 28khz/40khz High Vibration Efficiency
Durable Ultrasonic Cleaning Transducer 28khz/40khz High Vibration Efficiency
Durable Ultrasonic Cleaning Transducer 28khz/40khz High Vibration Efficiency
Durable Ultrasonic Cleaning Transducer 28khz/40khz High Vibration Efficiency

Packing:
Durable Ultrasonic Cleaning Transducer 28khz/40khz High Vibration Efficiencyultrasonic cleaner transducer installation cleaning tank 28khz/40khz
